Description
With tons of extra features and a great price, an ACiQ furnace and heat pump system is the perfect choice for all of your heating and cooling needs for any time of year.
40,000 BTU 80% AFUE Single Stage Gas Furnace | 14″ Width | Upflow/Horizontal Â
OVERVIEW
The AQ-GR9S800403AN ACiQ gas furnace features high-quality construction and efficient operation at a great value. The AQ-GR9S800403AN single-stage, 9-speed furnace utilizes ACiQ’s superior heat exchanger design to provide efficient, reliable heating to your home. If you’re looking to cut your energy bills and improve your comfort without breaking the bank, your search stops with the ACiQ AQ-GR9S800403AN.
QUICK FACTS
- This furnace is ideal to heat a small house (depending on climate)
- 40,000 BTU 80% efficient natural gas furnace
- Requires metal flue venting
- Complies with Clean Air Act New Refrigerant Requirements
- Can be used in the upflow or horizontal orientation
- Can be converted to an LP furnace with a conversion kit (sold separately)
- Innovative design for electrical efficiency, safety, and lower sound output
40,000 BTU
The AQ-GR9S800403AN ACiQ gas furnace is 40,000 BTU’s. This BTU count is a measure of the input of the furnace per hour, while the output of this furnace is 32,000 BTU’s (40,000 X 80% AFUE) per hour. In ideal climate conditions, this 40,000 BTU furnace is usually used to heat a small house.
80% Efficiency Rating
The AQ-GR9S800403AN ACiQ gas furnace is 80% efficient, which meets the market’s minimum furnace efficiency standards. This means that 80% of the gas going into the furnace is used to heat your home and the remaining 20% is lost out of the flue venting. Please note that all 80% furnaces must be vented using metal flue venting, while any furnace with an efficiency of 90% or higher must be vented using plastic/PVC venting.
Please note that this furnace does not comply with California Low NOx or Ultra-Low NOx regulations. If you have any questions, please contact us.
Single Stage Furnace
The AQ-GR9S800403AN ACiQ gas furnace is a single stage furnace has only one heat output. Regardless of the indoor temperature, this furnace will burn at 100% output whenever the thermostat calls for it. Like a light switch, this furnace’s burner will either be on or off and nothing in between. A single stage furnace is the standard efficient furnace since every time your furnace turns on the furnace uses the same amount of energy.
Natural Gas or LP Furnace
From the factory, the AQ-GR9S800403AN runs on natural gas. However all ACiQ gas furnaces can be converted to propane using the furnace’s corresponding LP conversion kit, an optional accessory at an additional cost that consists of a replacement set of orifices and springs.
9-Speed ECM Blower Motor
Instead of the last generation PSC blower motor, the AQ-GR9S800403AN utilizes a 9-speed ECM motor, which uses less power and provides smarter air circulation. All of this causes an overall increase in the electrical efficiency of your furnace, which saves you money.
Warranty
With installation that follows your state and local codes and with online registration, all ACiQ furnaces come with a 10-year parts and lifetime heat exchanger warranty through the manufacturer.
Durable Hot Surface Ignitor
The hot surface ignitor on modern ACiQ furnaces are more durable than previous designs, decreasing related issues and lowering maintenance costs. These hot surface ignitors are also more efficient than standing pilot and older HSI designs, saving you even more money.
Self-Diagnostic Control Board
The ACiQ brand has improved technology from years of production experience, allowing for a long-lasting product that rarely has any issues. However, if something does go wrong on the furnace, the control board has a set of sensors that allow it to diagnose basic issues, allowing for easy troubleshooting and to notify the owner if basic maintenance or warranty work is recommended. This increases the overall safety of the unit, for the furnace itself and the occupants of the home where it is installed.
Heavy Gauge Steel Cabinet
The heavy-gauge steel cabinet on new ACiQ furnaces provide adequate protection to the internal mechanisms of the unit. The cabinet is also more air-tight than previous models, allowing for a quiet, more economical unit due to losing less heat and preventing more sound from exiting the unit.
Ease of Installation
The value of modern ACiQ furnaces doesn’t end at efficiency. Today’s ACiQ furnaces feature many different connection options to reduce installation. The AQ-GR9S800403AN model has a more universal design, which consists of its ability to be installed in both an upflow or horizontal (right or left) configuration. This allows for an easier installation in more locations, from your attic to your basement. The furnace also comes with color-coded low-voltage terminals that allow for a shorter and easier installation time, which decreases installation costs.
1.5 Ton 14.3 SEER2 Heat Pump Condenser – R32 Single Stage
Convenient Heating & Cooling from a Single Outdoor Unit
Make staying comfortable at home a little easier with this ACiQ heat pump condenser. When paired with compatible indoor equipment, it provides heating and cooling from one outdoor unit, helping you stay comfortable through changing seasons while offering an alternative to traditional gas heating.
Key Benefits
- Heating and Cooling from One Unit – Provides electric heating and cooling when paired with compatible indoor equipment.
- Sized for Smaller Homes – The 1.5 ton heat pump is generally suitable for homes around 600-1,000 sq. ft., depending on climate and home design.
- Energy-Efficient Cooling – Up to 14.3 SEER2 cooling performance supports energy-conscious comfort when paired with compatible indoor equipment.
- Climate-Based Heating Performance – At 0°F, this heat pump operates at 40% efficiency, making it a good fit for warmer climates where moderate heating support is sufficient.
- Factory-Installed Filter Drier – Helps protect the refrigeration system from moisture and contaminants.
Heating & Cooling Capacity for Your Home
This heat pump provides 1.5 tons of heating and cooling capacity for homes around 600-1,000 square feet. Because heat pump performance can vary by climate and outdoor temperature, final sizing should be confirmed by a professional based on your region, insulation, windows, ceiling height, air leakage, and home layout.
Dependable Heating and Cooling
A heat pump provides heating and cooling from one outdoor unit when paired with compatible indoor equipment. In warmer months, it helps move heat out of the home, and in cooler months, it reverses operation to transfer available heat indoors. This outdoor condenser is built for year-round operation with durable cabinet construction, R32 refrigerant, and a factory-installed filter drier to help protect the refrigeration system from moisture and contaminants.
Efficient Year-Round Comfort
This ACiQ heat pump delivers up to 14.3 SEER2 cooling efficiency when installed as part of a compatible system. Its energy-conscious design helps support dependable comfort through changing seasons when properly matched with compatible indoor equipment.
Comfort That Fits Your Climate
Not all heat pumps are built the same. Depending on your climate, the best fit can depend on how efficiently the heat pump performs at lower outdoor temperatures. At 0°F, this heat pump operates at 40% efficiency, making it a good fit for warmer climates where moderate heating support is sufficient. The right match can help reduce energy use while keeping your home comfortable through changing seasons.
Warranty
When installed according to applicable codes and registered online with ACiQ, this heat pump includes:
- 10-Year Parts Limited Warranty
Warranty coverage requires proper installation and online registration. Installation by a qualified HVAC professional is recommended to maintain warranty eligibility.
What’s Included
- ACiQ heat pump condenser
- Factory-installed filter drier
Recommended Accessories
- Line Set – Select the appropriate line set length and configuration shown on the product page for your installation.
- Condenser Installation Kit – Common installation materials for connecting the outdoor unit.
- Thermostat – Choose from compatible non-programmable, programmable, or smart thermostat options based on your control preferences.
- Mounting Equipment – Choose from available condenser mounting options, such as an equipment pad or wall mounting bracket, based on the installation location.
Requirements & Considerations
- Compatible Indoor Equipment – This outdoor heat pump must be paired with compatible indoor equipment to provide heating and cooling.
- Refrigerant Compatibility – Use only with compatible equipment designed for the same refrigerant type.
- Professional Installation Recommended – Proper installation by a certified HVAC installer is important for safe operation and warranty coverage.
R32 Refrigerant Compatibility Notice
Disclaimer: This condenser contains R32 refrigerant, classified as an A2L refrigerant, and requires a refrigerant leakage detection system to be installed. To comply with safety standards, this unit must be paired with an R32 air handler or evaporator coil already equipped with a leakage detection system. Failure to comply with these requirements may result in safety hazards and could void the warranty. Please call us at 1-888-912-1827 if you have any questions.

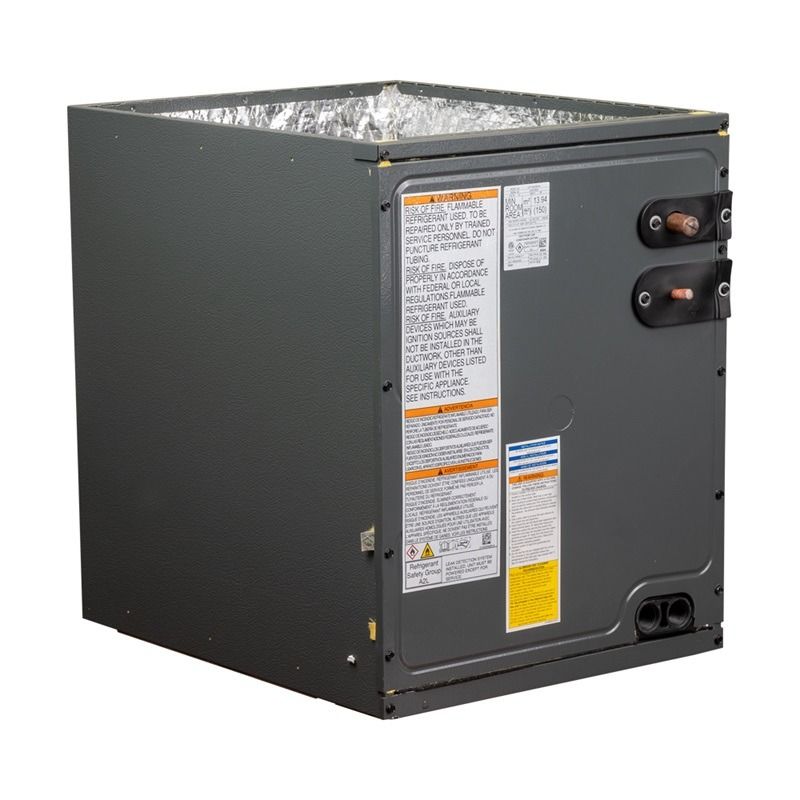

2 Ton 14″ Width Upflow/Downflow Cased Evaporator Coil – TXV – R32
Cased Coil Built for R32 System Compatibility
This ACiQ cased evaporator coil is designed to work with compatible R32 condensers and furnaces. With a 1.5 to 2 ton capacity, 14″ cabinet width and upflow/downflow installation flexibility, it helps support proper equipment matching for approved split HVAC applications.
Key Benefits
- Indoor Coil for Split HVAC Setups – Works with compatible condensers and furnaces to support system performance.
- 1.5 to 2 Ton Capacity – Designed for approved equipment matches where the coil capacity is equal to or greater than the condenser capacity.
- 14″ Cabinet Width – Helps ensure the coil fits properly with compatible furnace cabinets and installation spaces.
- Upflow/Downflow Installation – Supports installation flexibility for compatible vertical applications.
- Factory-Installed TXV – Includes a thermostatic expansion valve to help regulate refrigerant flow.
- R32 Compatible – Designed for use with compatible R32 refrigerant equipment.
Matched for Condenser and Furnace Compatibility
Proper coil matching is important for system performance, fit, and installation. This coil’s 1.5 to 2 ton capacity helps match it to compatible condenser applications, while the 14″ cabinet width helps determine whether it will fit correctly with the furnace and available installation space.
How the Indoor Coil Works in Your System
The indoor coil is part of the refrigerant circuit and helps transfer heat as air moves across the coil. In a properly matched system, it works with the condenser, furnace blower, and refrigerant flow controls to support reliable home comfort.
Warranty
When installed according to applicable codes and registered online with ACiQ, this evaporator coil includes:
- 10-Year Parts Limited Warranty
Warranty coverage requires proper installation and online registration. Installation by a qualified HVAC professional is recommended to maintain warranty eligibility.
What’s Included
- ACiQ cased evaporator coil
- Factory-installed TXV
Recommended Equipment Options
- Compatible Condenser – Used with the coil as part of a compatible split HVAC setup.
- Compatible Gas Furnace – Provides the indoor airflow needed to move air across the coil in compatible applications.
Requirements & Considerations
- Compatible Condenser Match – This coil must be paired with compatible outdoor equipment designed for the correct refrigerant type and approved equipment match.
- Coil Tonnage – Coil capacity should be equal to or greater than the condenser capacity. Do not pair a coil with a condenser that exceeds the coil’s rated capacity.
- Furnace Cabinet Width – Confirm the 14″ coil cabinet width is compatible with the furnace and available installation space.
- Replacement Planning – When replacing a coil, review whether the condenser, furnace, or overall equipment setup should also be updated.
- Refrigerant Compatibility – Use with compatible R32 equipment and installation requirements.
- Installation Orientation – Confirm the upflow/downflow coil orientation matches the installation application before purchase.
- Professional Installation Recommended – Proper installation by a certified HVAC installer is important for safe operation and warranty coverage.
R32 Refrigerant Compatibility Notice
Disclaimer: This evaporator coil is designed for use with R32 refrigerant systems, classified as an A2L refrigerant. R32 systems must be installed with compatible equipment and any required refrigerant leak detection components according to the product specifications, installation manual, and applicable safety standards. Failure to follow these requirements may result in safety hazards and could void the warranty. Please call us at 1-888-912-1827 if you have any questions.
