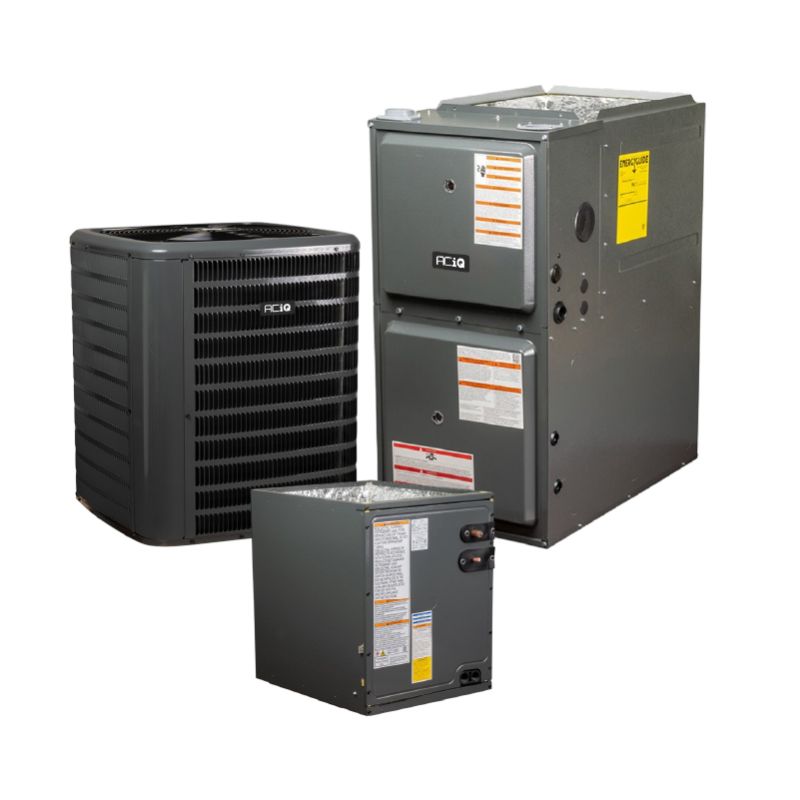

3 Ton 13.4 SEER2 96% AFUE 80,000 BTU Furnace and AC System – R32 Upflow

3 Ton 13.4 SEER2 Central Air Conditioner Condenser – R32 Single Stage

Efficient Cooling for Medium-Sized Homes

Keep your home cool and comfortable all summer long with the ACiQ central air conditioner condenser. Designed for reliable split-system cooling, this budget-friendly outdoor unit is a great choice whether you’re replacing an older AC condenser or completing a new cooling system with a compatible indoor coil or air handler. Built for dependable performance, quiet operation, and lasting durability, it delivers efficient cooling you can count on while keeping installation simple for medium-sized homes.

Key Benefits

• Sized for Medium-Sized Homes – 3 ton cooling capacity is generally suitable for homes approximately 1,600–1,900 sq. ft., depending on climate, insulation, windows, ceiling height, air leakage, home layout, and a professional sizing review.
• Budget-Friendly Efficiency – 13.4 SEER2 performance provides dependable cooling at an economical efficiency level for approved installation regions.
• Cooling-Only Performance – Designed for central air conditioning applications when paired with a compatible indoor evaporator coil or air handler.
• Low Operating Sound – Includes sound-reducing features and has a rated sound level of approximately 74 dBA.
• Factory-Charged for Installation – Comes factory charged for up to 15′ of line set to support a cleaner installation process.
• Factory-Installed Filter Drier – Protects the refrigeration system by reducing moisture and contaminants.

Cooling Capacity for Medium-Sized Homes

With 3 tons of cooling capacity, this condenser is commonly used for homes approximately 1,600–1,900 sq. ft. in various climates. It is a cooling-only outdoor unit and must be paired with a compatible indoor evaporator coil or air handler to operate.

Actual sizing depends on your local climate, insulation, windows, ceiling height, air leakage, home layout, and a professional sizing review.

Budget-Friendly 13.4 SEER2 Efficiency

A 13.4 SEER2 efficiency rating provides dependable cooling while keeping equipment costs affordable for eligible installation locations.

Installation Restrictions

Due to efficiency requirements, this unit cannot be installed in the following states: Alabama, Arizona, Arkansas, California, Delaware, Florida, Georgia, Kentucky, Louisiana, Maryland, Mississippi, Nevada, New Mexico, North Carolina, Oklahoma, South Carolina, Tennessee, Texas, and Virginia.

Warranty

This condenser includes a 10-Year Limited Parts Warranty with online registration. Installation must comply with state and local codes, and warranty coverage may be void if the unit is not installed by a qualified professional.

What’s Included

• ACiQ Central Air Conditioner Condenser – Outdoor cooling unit for a compatible split-system installation.
• Factory-Installed Filter Drier – Protects the refrigeration system by reducing moisture and contaminants.

Recommended Accessories

• Line Set – Connects the outdoor condenser to compatible indoor equipment for refrigerant flow; select the 30′ or 50′ option that matches the installation.
• Condenser Installation Kit – Provides key installation materials for a cleaner condenser setup.

Requirements & Considerations

• Compatible Indoor Equipment Required – This cooling-only condenser must be paired with a compatible indoor evaporator coil or air handler.
• Electrical Requirements – Requires a 208 / 230 V. 1 Phase 60 Hz electrical supply.
• Line Set Connections – Uses a 3/8″ liquid line and a 7/8″ suction line.
• Professional Installation Recommended – Proper installation, system matching, and refrigerant handling are important for safe operation and warranty coverage.

R32 Refrigerant Compatibility Notice

Disclaimer: This condenser contains R32 refrigerant, classified as an A2L refrigerant, and requires a refrigerant leakage detection system to be installed. To comply with safety standards, this unit must be paired with an R32 air handler or evaporator coil already equipped with a leakage detection system. Failure to comply with these requirements may result in safety hazards and could void the warranty. Please call us at 1-888-912-1827 if you have any questions.

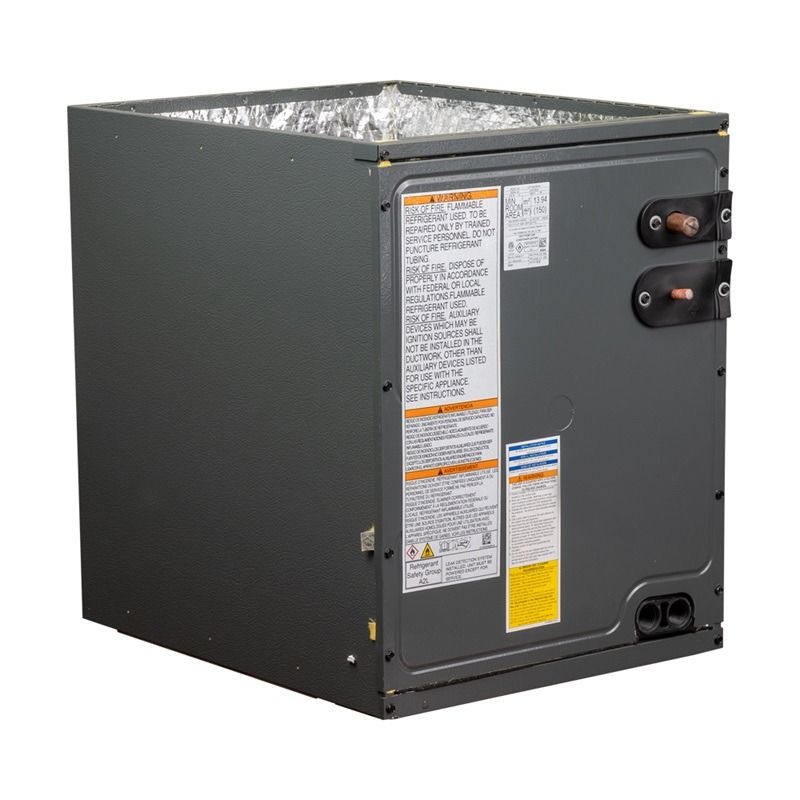

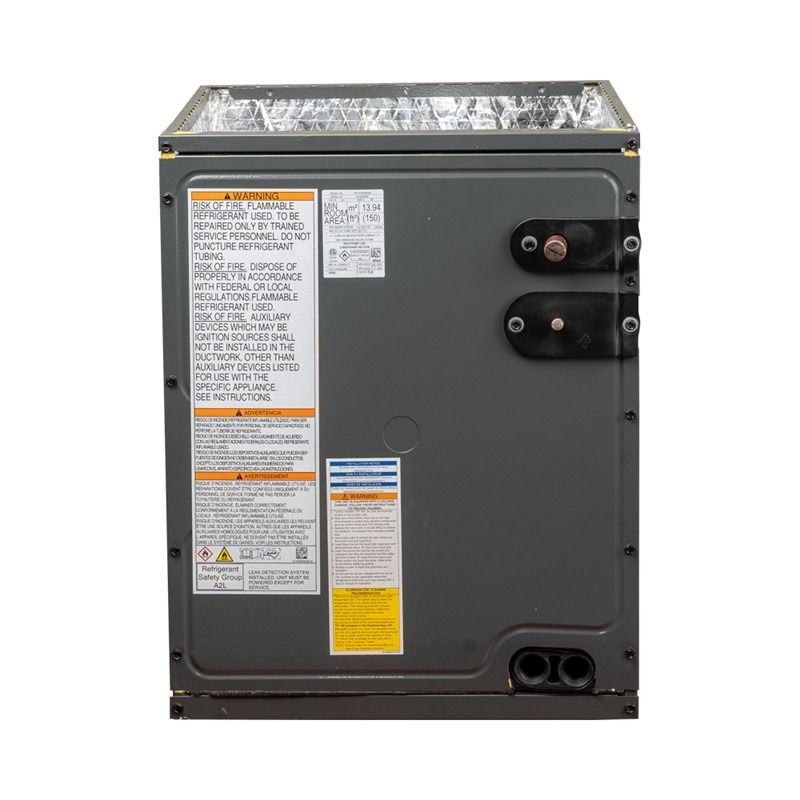

3 Ton 17.5″ Width Upflow/Downflow Cased Evaporator Coil – TXV – R32

Dependable Indoor Coil for Split HVAC Setups

This ACiQ cased evaporator coil is designed to work with compatible R32 condensers and furnaces. With a 2 to 3 ton capacity, 17.5″ cabinet width and upflow/downflow installation flexibility, it helps support proper equipment matching for approved split HVAC applications.

Key Benefits

• Indoor Coil for Split HVAC Setups – Works with compatible condensers and furnaces to support system performance.
• 2 to 3 Ton Capacity – Designed for approved equipment matches where the coil capacity is equal to or greater than the condenser capacity.
• 17.5″ Cabinet Width – Helps ensure the coil fits properly with compatible furnace cabinets and installation spaces.
• Upflow/Downflow Installation – Supports installation flexibility for compatible vertical applications.
• Factory-Installed TXV – Includes a thermostatic expansion valve to help regulate refrigerant flow.
• R32 Compatible – Designed for use with compatible R32 refrigerant equipment.

Designed for Compatible Equipment Matching

Proper coil matching is important for system performance, fit, and installation. This coil’s 2 to 3 ton capacity helps match it to compatible condenser applications, while the 17.5″ cabinet width helps determine whether it will fit correctly with the furnace and available installation space.

How the Coil Helps Support Home Comfort

The indoor coil is part of the refrigerant circuit and helps transfer heat as air moves across the coil. In a properly matched system, it works with the condenser, furnace blower, and refrigerant flow controls to support reliable home comfort.

Warranty

When installed according to applicable codes and registered online with ACiQ, this evaporator coil includes:

• 10-Year Parts Limited Warranty

Warranty coverage requires proper installation and online registration. Installation by a qualified HVAC professional is recommended to maintain warranty eligibility.

What’s Included

• ACiQ cased evaporator coil
• Factory-installed TXV

Recommended Equipment Options

• Compatible Condenser – Used with the coil as part of a compatible split HVAC setup.
• Compatible Gas Furnace – Provides the indoor airflow needed to move air across the coil in compatible applications.

Requirements & Considerations

• Compatible Condenser Match – This coil must be paired with compatible outdoor equipment designed for the correct refrigerant type and approved equipment match.
• Coil Tonnage – Coil capacity should be equal to or greater than the condenser capacity. Do not pair a coil with a condenser that exceeds the coil’s rated capacity.
• Furnace Cabinet Width – Confirm the 17.5″ coil cabinet width is compatible with the furnace and available installation space.
• Replacement Planning – When replacing a coil, review whether the condenser, furnace, or overall equipment setup should also be updated.
• Refrigerant Compatibility – Use with compatible R32 equipment and installation requirements.
• Installation Orientation – Confirm the upflow/downflow coil orientation matches the installation application before purchase.
• Professional Installation Recommended – Proper installation by a certified HVAC installer is important for safe operation and warranty coverage.

R32 Refrigerant Compatibility Notice

Disclaimer: This evaporator coil is designed for use with R32 refrigerant systems, classified as an A2L refrigerant. R32 systems must be installed with compatible equipment and any required refrigerant leak detection components according to the product specifications, installation manual, and applicable safety standards. Failure to follow these requirements may result in safety hazards and could void the warranty. Please call us at 1-888-912-1827 if you have any questions.

80,000 BTU 96% AFUE Single Stage Gas Furnace | 17.5″ Width | Upflow/Horizontal

OVERVIEW

The AQ-GR9S960803BN ACiQ gas furnace features high-quality construction and efficient operation at a great value. The AQ-GR9S960803BN single-stage, 9-speed furnace utilizes ACiQ’s superior heat exchanger design to provide efficient, reliable heating to your home. If you’re looking to cut your energy bills and improve your comfort without breaking the bank, your search stops with the ACiQ AQ-GR9S960803BN.

QUICK FACTS

• This furnace is ideal to heat a medium-sized house (depending on climate)
• 80,000 BTU 96% efficient natural gas furnace
• Requires plastic/PVC flue venting
• Complies with Clean Air Act New Refrigerant Requirements
• Can be used in the upflow or horizontal orientation
• Can be converted to an LP furnace with a conversion kit (sold separately)
• Innovative design for electrical efficiency, safety, and lower sound output

80,000 BTU

The AQ-GR9S960803BN ACiQ gas furnace is 80,000 BTU’s. This BTU count is a measure of the input of the furnace per hour, while the output of this furnace is 76,800 BTU’s (80,000 X 96% AFUE) per hour. In ideal climate conditions, this 80,000 BTU furnace is usually used to heat a medium-size house.

96% Efficiency Rating

The AQ-GR9S960803BN ACiQ gas furnace is 96% efficient, which is one of the highest efficiencies for gas furnaces on the market today. This means that 96% of the gas going into the furnace is used to heat your home, while the remaining 4% is lost out of the flue venting. Please note that all furnaces that are 90% efficient and higher require plastic/PVC flue venting while furnaces that are 80% efficient require metal flue venting.

Single Stage Furnace

The AQ-GR9S960803BN ACiQ gas furnace is a single stage furnace has only one heat output. Regardless of the indoor temperature, this furnace will burn at 100% output whenever the thermostat calls for it. Like a light switch, this furnace’s burner will either be on or off and nothing in between. A single stage furnace is the standard efficient furnace since every time your furnace turns on the furnace uses the same amount of energy.

Natural Gas or LP Furnace

From the factory, the AQ-GR9S960803BN runs on natural gas. However all ACiQ gas furnaces can be converted to propane using the furnace’s corresponding LP conversion kit, an optional accessory at an additional cost that consists of a replacement set of orifices and springs.

9-Speed ECM Blower Motor

Instead of the last generation PSC blower motor, the AQ-GR9S960803BN utilizes a 9-speed ECM motor, which uses less power and provides smarter air circulation. All of this causes an overall increase in the electrical efficiency of your furnace, which saves you money.

Warranty

With installation that follows your state and local codes and with online registration, all ACiQ furnaces come with a 10-year parts and lifetime heat exchanger warranty through the manufacturer.

Durable Hot Surface Ignitor

The hot surface ignitor on modern ACiQ furnaces are more durable than previous designs, decreasing related issues and lowering maintenance costs. These hot surface ignitors are also more efficient than standing pilot and older HSI designs, saving you even more money.

Self-Diagnostic Control Board

The ACiQ brand has improved technology from years of production experience, allowing for a long-lasting product that rarely has any issues. However, if something does go wrong on the furnace, the control board has a set of sensors that allow it to diagnose basic issues, allowing for easy troubleshooting and to notify the owner if basic maintenance or warranty work is recommended. This increases the overall safety of the unit, for the furnace itself and the occupants of the home where it is installed.

Heavy Gauge Steel Cabinet

The heavy-gauge steel cabinet on new ACiQ furnaces provide adequate protection to the internal mechanisms of the unit. The cabinet is also more air-tight than previous models, allowing for a quiet, more economical unit due to losing less heat and preventing more sound from exiting the unit.

Ease of Installation

The value of modern ACiQ furnaces doesn’t end at efficiency. Today’s ACiQ furnaces feature many different connection options to reduce installation. The AQ-GR9S960803BN model has a more universal design, which consists of its ability to be installed in both an upflow or horizontal configuration. This allows for an easier installation in more locations, from your attic to your basement. The furnace also comes with color-coded low-voltage terminals that allow for a shorter and easier installation time, which decreases installation costs.

Please note that this furnace requires a drain kit if installed horizontally. Upflow configurations do not require the kit.
