Description

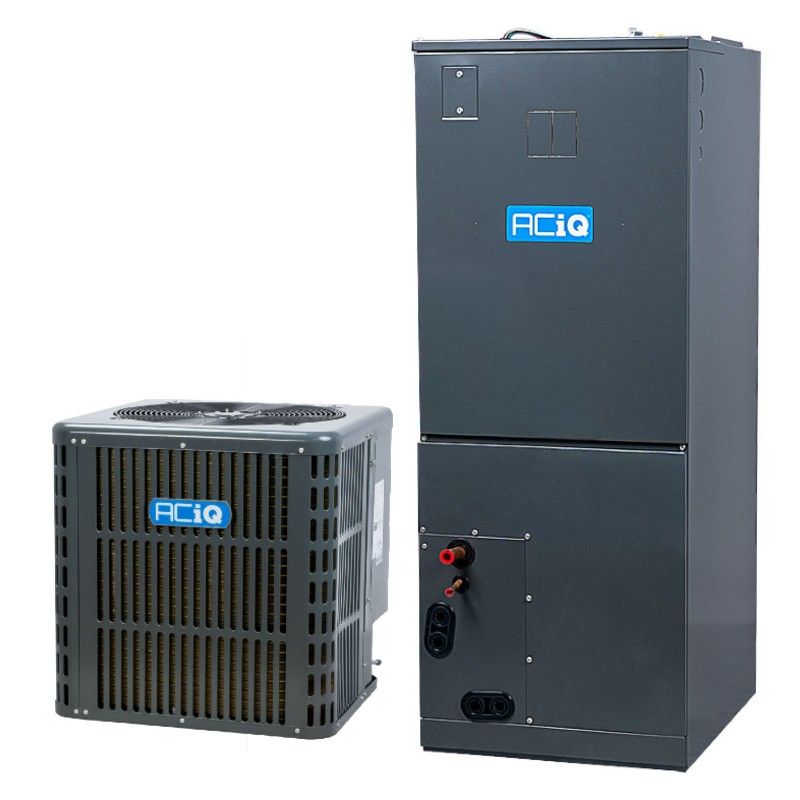

Affordable Central AC System Solutions for Any Home
An ACiQ air conditioner system is the perfect AC system choice for any type of home. These systems combine efficient cooling performance with a multi-positional air handler, allowing for flexible installation. Featuring R32 refrigerant and 14.3 SEER2 efficiency, these systems deliver reliable comfort with a reduced environmental impact.
Key Features
- All-Electric Cooling – Modern air conditioning solution ideal for replacing aging systems at a value price point.
- 14.3 SEER2 Performance – Suitable for all regions of the US.
- High Ambient Temperature Cooling – Capable of providing cooling in outdoor temperatures as high as 131°F.
- Matched Indoor Air Handler – Engineered for proper airflow, balanced performance, and simplified installation.
- Strong Warranty Coverage – Up to 10-year compressor and 7-year parts coverage with registration.
- Optional Electric Heat Kits Available – Add a heat kit to the air handler for when outdoor temperatures get unexpectedly cold.
2.5 Tons
This air conditioning system is well-suited for small-to-medium-sized residential applications, delivering 2.5 tons of efficient cooling in ideal climates. The rotary compressor enables the condenser to cool in temperatures as high as 131°F with minimal temperature swings. Supplemental electric heat kits are available for areas where the temperatures may get cold.
Installation Versatility
For extra versatility, the air handler in this air conditioning system is fully multi-positional. This means that it can be installed in upflow, downflow, and horizontal left or right orientations, enabling the air handler to fit perfectly in basements, attics, and crawlspaces.
Warranty
This system includes a 10-year compressor warranty on the air conditioner and 7-year parts warranties on both the air conditioner and the air handler. Please note that in order for the warranty to be upheld, installation following your state and local codes are required, along with timely registration through the manufacturer.
What’s Included
- Outdoor Air Conditioning Condenser
- Indoor Multi-Positional Air Handler
- Owner’s Manual, Guides, and Other Documents

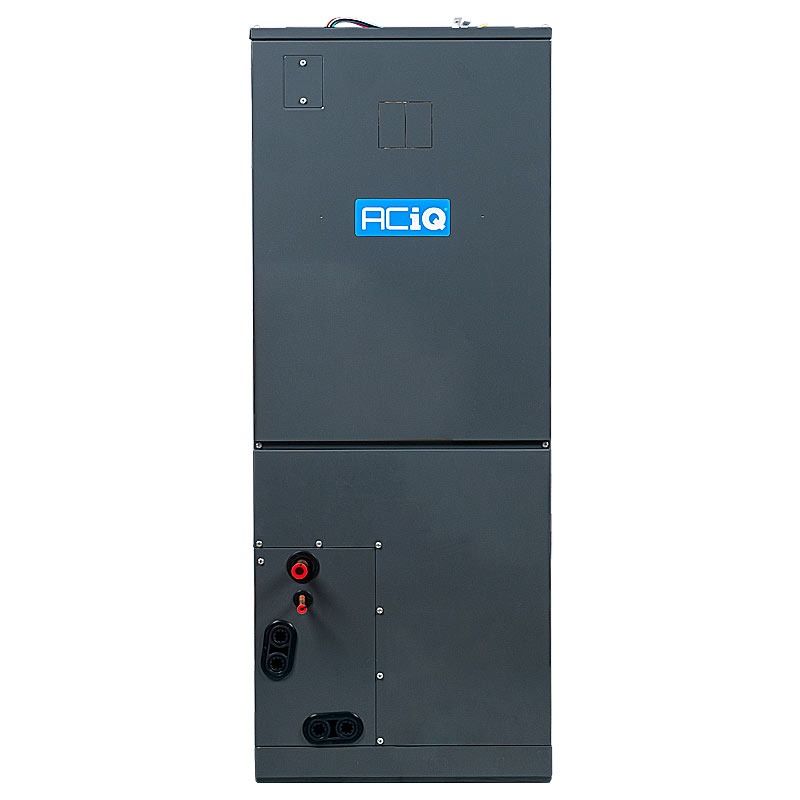

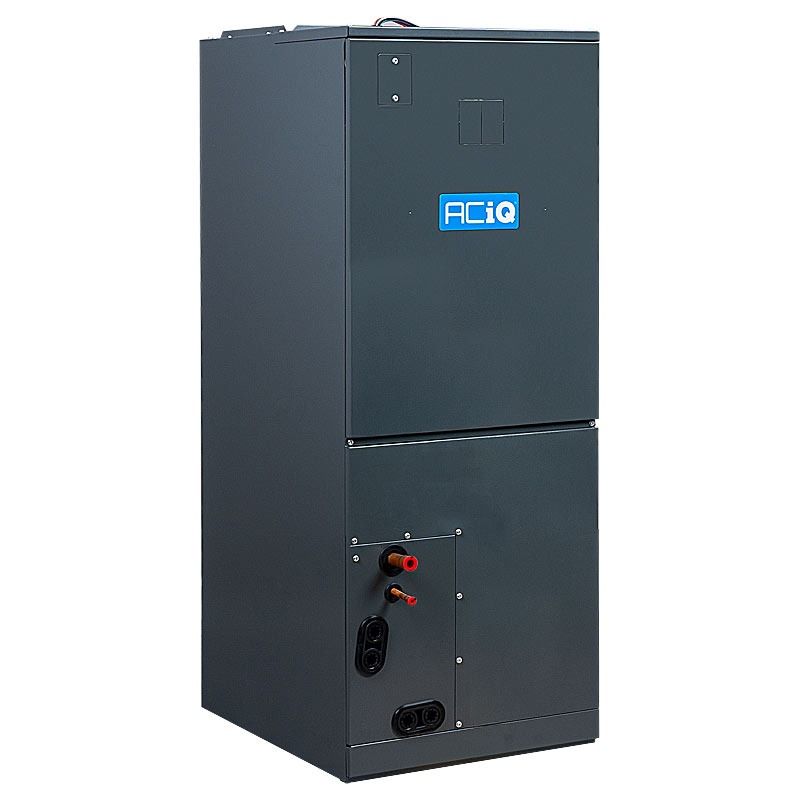

ACiQ 2.5 Ton Multi-Positional Air Handler – 21″ Width – R32
Intelligent, Flexible Comfort with ACiQ’s Multi-Positional Air Handlers
The ACiQ 2.5 Ton Multi-Positional Air Handler delivers efficient and reliable indoor comfort in a 21-inch cabinet. This air handler is built with durability in mind to deliver lasting performance. If you want superior quality and enhanced comfort, look no further than this model.
Key Features
- 2.5 ton 21″ wide air handler
- Compatible with up to 20kW electric heat kits
- Certified for use with R32 refrigerant
- Multi-positional – Can be installed in upflow, downflow, or horizontal orientations
- Variable speed ECM blower motor
2.5 Ton
With its 2.5 ton capacity, this air handler is suited for small-to-medium-sized homes, providing reliable airflow and even temperature control when paired with a compatible outdoor unit. Please note that for this unit to provide cooling, an outdoor condenser is required for it to function. The unit can support electric heating as a straight electric furnace or as a backup for a heat pump, offered at an additional cost to be field installed.
Installation and Maintenance

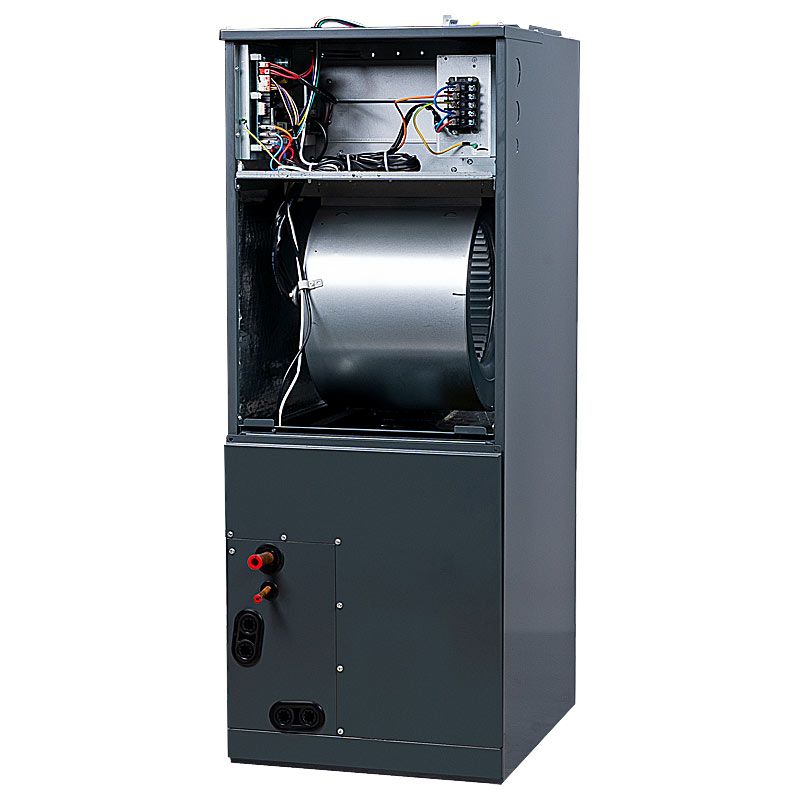

The AC-I-30AH14 is a fully multi-positional air handler, meaning that it can be installed in upflow, downflow, and both horizontal left and right configurations. The front panels can be removed for easy access to its internal components for maintenance.
Warranty
ACiQ offers a 7 year parts limited warranty on this air handler. Please note that in order for the warranty to be upheld, installation following your state and local codes are required, along with timely registration through the manufacturer.
What’s Included
- Indoor Multi-Positional Air Handler
- Owner’s Manual, Guides, and Other Documents
ACiQ 2.5 Ton 14.3 SEER2 Central Air Conditioner Condenser – R32
Reliable Cooling for Small to Medium Homes
This ACiQ central air conditioner condenser is a dependable cooling-only option for small to medium homes. It is designed for use with compatible indoor equipment and gives homeowners a straightforward replacement or system-building option with quiet operation and durable outdoor construction.
Key Benefits
- Sized for Small to Medium Homes – 2.5 ton cooling capacity is generally suitable for homes approximately 1,300–1,600 sq. ft., depending on climate, insulation, home layout, and a professional sizing review.
- 14.3 SEER2 Efficiency – Provides reliable cooling performance for compatible central air installations.
- Quiet Outdoor Operation – Rated at approximately 59 dBA to help keep outdoor sound levels lower.
- Durable Outdoor Design – Built for residential outdoor use with corrosion-resistant construction.
- Pre-Charged for Installation – Comes pre-charged with R32 refrigerant to support the installation process.
Cooling Capacity for Small to Medium Homes
With 2.5 tons of cooling capacity, this condenser is commonly used for homes approximately 1,300–1,600 sq. ft. in various climates. Actual sizing depends on your local climate, insulation, windows, ceiling height, air leakage, home layout, and a professional sizing review.
14.3 SEER2 Cooling Efficiency
This condenser provides dependable cooling-only performance when paired with compatible indoor equipment. It is a practical choice for homeowners replacing an outdoor condenser or building a matched central air setup.
Built for Outdoor Performance
The top-discharge cabinet is designed for residential cooling applications and offers quiet operation, service-friendly access, and durable outdoor construction for long-term use.
Warranty
This condenser includes a 10-Year Compressor Warranty and 7-Year Parts Warranty with online registration. Installation must follow state and local codes, and warranty coverage may be void if the unit is not installed by a qualified professional.
What’s Included
- ACiQ Central Air Conditioner Condenser – Outdoor cooling-only condenser for compatible split-system applications.
Recommended Accessories
- Line Set – Connects the outdoor condenser to compatible indoor equipment for refrigerant flow.
- Condenser Installation Kit – Provides key installation materials for a cleaner condenser setup.
Requirements & Considerations
- Compatible Indoor Equipment Required – This cooling-only condenser must be paired with a compatible R32 evaporator coil or air handler.
- Electrical Requirements – Requires a 208 / 230 V, 1 Phase, 60 Hz electrical supply.
- Breaker Requirements – Requires a 25 Amps max breaker and 17 Amps minimum breaker size.
- Line Set Selection – Use the line set option and connection sizing shown on the live product page or confirmed by Product installation guidance.
- Professional Installation Recommended – Proper installation, system matching, and refrigerant handling are important for safe operation and warranty coverage.
R32 Refrigerant Compatibility Notice
Disclaimer: This condenser contains R32 refrigerant, classified as an A2L refrigerant, and requires a refrigerant leakage detection system to be installed. To comply with safety standards, this unit must be paired with an R32 air handler or evaporator coil already equipped with a leakage detection system. Failure to comply with these requirements may result in safety hazards and could void the warranty. Please call us at 1-888-912-1827 if you have any questions.
