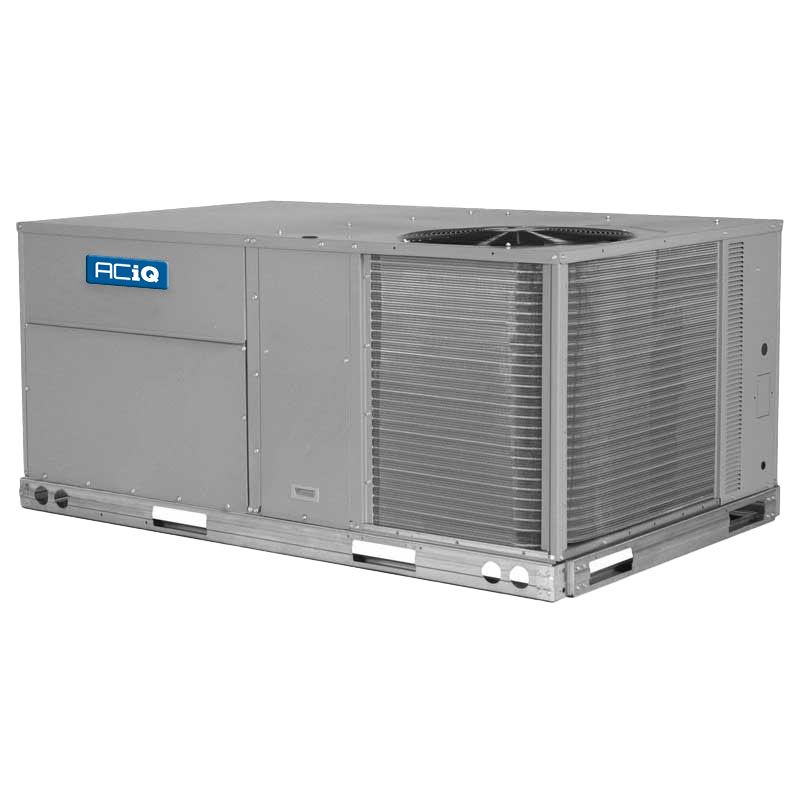

ACIQ 7.5 Ton 180,000 BTU 11.2 EER Light Commercial Gas Packaged Unit – High Heat | 208/230V 3 Phase – R454B – Two Stage

7.5-Ton Standard-Efficiency Gas/Electric Packaged Rooftop Unit for Light Commercial Applications with X-Vane™ Technology

The ACiQ RGF090HF2A0AAA is a gas/electric packaged rooftop unit within the AirQuest RGF Standard Efficiency Gas Heat Light Commercial Rooftop Unit platform. The RGF platform is designed for year-round light commercial heating and cooling, combining gas heat and electric cooling with two-stage operation, a two-speed fan, direct-drive ECM/Vane Axial technology, and X-Vane™ fan technology in a single packaged rooftop system.

Key Benefits

• 13.4 SEER2 / 15.5 IEER – Provides efficient seasonal and integrated part-load cooling performance across the RGF platform.
• Two-Stage Operation – Provides two levels of operation to help match system output to changing commercial heating and cooling requirements.
• Two-Speed Fan – Provides airflow control for staged operation and commercial comfort.
• Direct-Drive ECM / Vane Axial Fan – Uses direct-drive fan technology with an electronically commutated motor and Vane Axial design.
• X-Vane™ Technology – Provides direct-drive indoor airflow without the conventional belt-driven fan arrangement.
• One- and Two-Stage Cooling – Provides cooling configuration flexibility for different commercial applications.
• Multiple Coil Options – Available RGF coil configurations include aluminum/copper round-tube plate-fin, copper/copper, precoated, and E-coated coils.
• Commercial Installation Options – Available options include economizers, hot gas re-heat adaptive dehumidification, low-ambient controls, smoke detectors, CO2 sensors, phase monitor protection, condensate overflow protection, non-fused disconnects, power exhaust, fan/filter status monitoring, and fault detection and diagnostics.

Gas Heating Performance

The RGF platform uses gas heating with two-stage operation for light commercial applications. The exact heating input and thermal-efficiency values for the RGF090HF2A0AAA are not stated in the current official AirQuest RGF product information and are therefore not inferred from an older RGS or RGH product family.

7.5-Ton Cooling Performance

The RGF090 model is the 7.5-ton nominal configuration within the RGF090-180 platform. AirQuest rates the RGF platform at 13.4 SEER2 and 15.5 IEER and identifies one- and two-stage cooling configurations. Exact model-specific net cooling capacity for the RGF090HF2A0AAA is not stated in the current official manufacturer product information and is therefore not substituted from another model.

13.4 SEER2 / 15.5 IEER Efficiency and X-Vane™ Fan Technology

The RGF platform provides 13.4 SEER2 and 15.5 IEER cooling efficiency. Direct-drive ECM/Vane Axial technology with X-Vane™ fan technology eliminates the conventional belt-driven fan arrangement while providing controlled indoor airflow. The two-speed fan supports staged system operation.

Packaged Rooftop Installation Design

The packaged configuration integrates gas heating, electric cooling, indoor air movement, refrigeration components, and controls into one outdoor cabinet. The exact electrical configuration for the RGF090HF2A0AAA is not independently stated in the current official RGF product information and is therefore not inferred from the model suffix or from a different product family.

Controls & Comfort

The RGF platform provides two-stage operation and one- or two-stage cooling configurations. Direct-drive ECM/Vane Axial fan technology provides controlled indoor airflow. Available options include the POL224 economizer controller, electromechanical controls, hot gas re-heat adaptive dehumidification and -20°F low-ambient controls, smoke detectors, CO2 sensors, winter start kits, phase monitor protection, fault detection and diagnostics, condensate overflow switches, non-fused disconnects, power exhaust, economizers, fan/filter status switches, and hinged panels.

Light Commercial Applications

The ACiQ RGF090HF2A0AAA is designed for light commercial rooftop applications requiring integrated gas heating and electric cooling. Its 7.5-ton nominal size, RGF standard-efficiency platform, two-stage operation, two-speed fan, and direct-drive X-Vane™ technology provide an integrated packaged heating and cooling solution.

Service & Maintenance

The direct-drive ECM/Vane Axial fan eliminates the conventional belt-driven fan arrangement, helping simplify fan service and maintenance. The RGF platform also provides service-oriented options including hinged panels, fan/filter status monitoring, condensate overflow protection, non-fused disconnects, smoke detectors, phase monitor protection, and fault detection and diagnostics.

Warranty

The ACiQ RGF090HF2A0AAA is covered by applicable manufacturer limited warranty provisions for the RGF packaged rooftop product family. AirQuest identifies a 15-year limited warranty for stainless-steel heat exchangers, a 10-year limited warranty for aluminized heat exchangers, a 5-year parts warranty, and a 1-year parts warranty, with applicable coverage determined by the component and warranty provisions. Warranty periods, registration requirements, installation requirements, and other conditions are subject to the applicable manufacturer warranty certificate.

Recommended Accessories

• POL224 Economizer Controller – Optional economizer controller for compatible outdoor-air applications.
• Hot Gas Re-Heat Adaptive Dehumidification / -20°F Low Ambient Controls – Optional humidity-control and low-ambient functionality for applicable installations.
• Non-Fused Disconnect – Optional electrical disconnect.
• Power Exhaust – Optional exhaust system for compatible economizer applications.
• Condensate Overflow Switch – Optional condensate protection accessory.
• Fan/Filter Status Switch – Optional airflow and filter monitoring accessory.

Reliable Commercial Comfort with the ACiQ RGF090HF2A0AAA

Experience reliable year-round commercial comfort with the ACiQ RGF090HF2A0AAA. Combining gas heating and electric cooling with two-stage operation, two-speed airflow, direct-drive X-Vane™ fan technology, and a packaged rooftop configuration for light commercial applications.
