Grundfos 96633591, Model UP53-46F, Series 200, (1-Speed), Cast Iron Circulator Pump, 3/4 HP, 115/230 Volts, 1 Phase, 60 Hz, 98 GPM Max, 15 ft Max Head

Description

Grundfos UP53-46F 1-Speed Cast Iron Circulator Pump

This ia a single-speed circulator pump designed for domestic heating systems. The pump provides reliable and maintenance-free operation as well as low energy consumption throughout its long lifespan.

The pump is supplied with a standard module in the terminal box. The standard module is to be connected to the mains supply via external contactor.

Features

• 1 speed motor
• Ceramic radial bearings
• Carbon axial bearing
• Stainless steel rotor can, bearing plate and rotor cladding.\
• Aluminium alloy stator housing
• Cast iron pump housing
• Stator with built-in thermal switch
• Liquid temperature range: 14 .. 230°F
• Maximum operating pressure: 145 psi
• Port-to-port length: 9-7/8″
• Flange size: 2.0″, 2.5″, 3.0″ non ANSI 4 bolt w/ (4) 0.63″ dia. holes
• Flange type: GF 53

Applications

• HVAC: Air conditioning
• HVAC: Heating
• Plumbing: Hot water recirculation
• Residential heating
• District cooling
• District heating
• Industrial heating

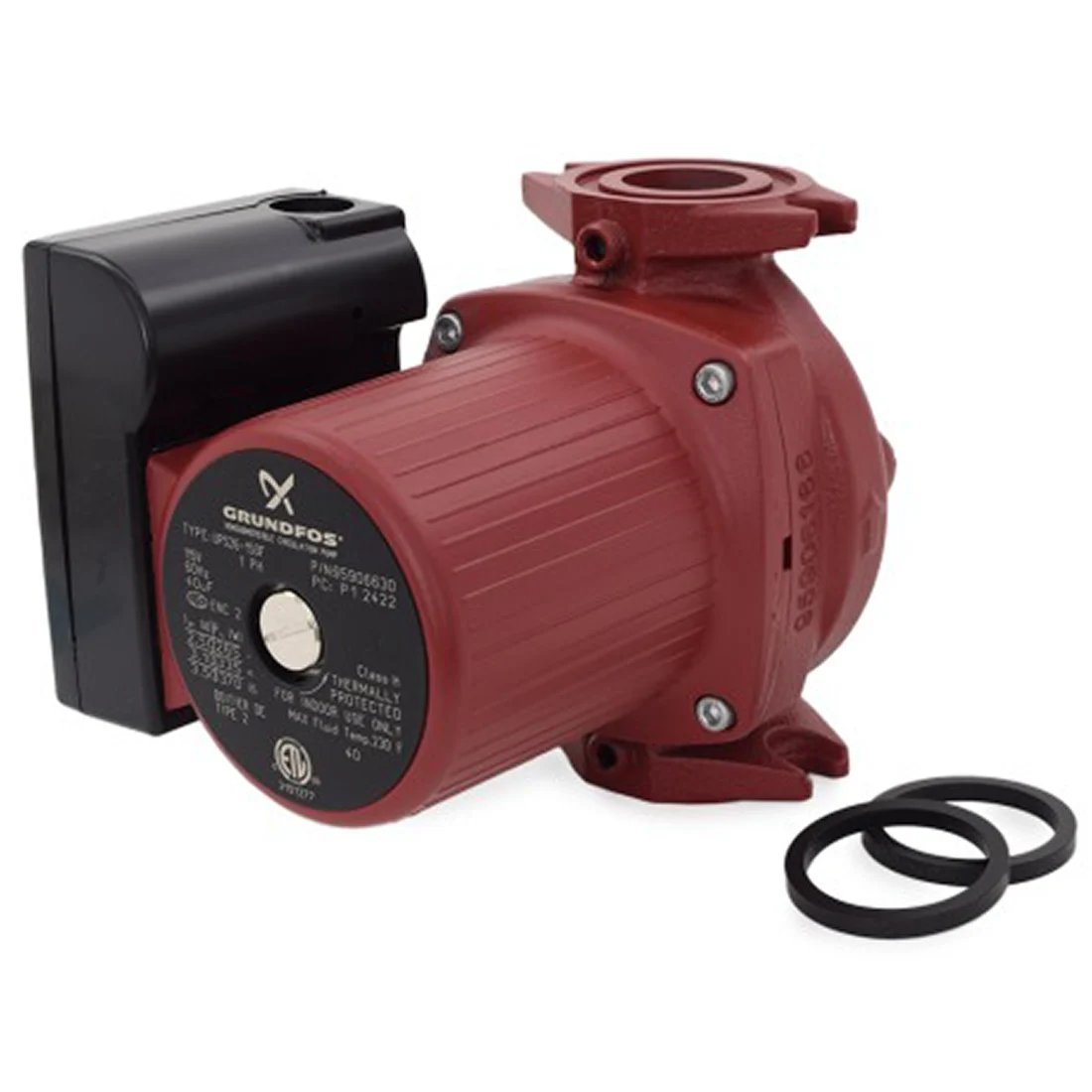

*Note: Picture is illustrative and may not reflect the actual product.*
