Description
The Taco 008-VSF6-1IFC is a microprocessor-based pump designed to regulate the temperature to a system through variable speed injection mixing. The versatile Setpoint version of the Variable Speed “00” can be set up to deliver a constant temperature, maintain a specific temperature drop between sensor locations, used as a bypass/shunt pump or integrated into a fan coil package to vary the speed of the pump based on supply air temperature. The 008-VSF6-1IFC can be configured as either direct acting (speed increases on a temperature decrease) or reverse acting (speed increases on a temperature increase). This unit can also be installed in a radiant injection mixing system which requires a constant supply of water temperature.
Features:
- Integral Flow Check: prevents gravity circulation, specially designed for variable speed systems, easy to service
- All-in-one pump/control
- Sensors included
- Easy to wire
- UL approved
- Snap-in PC board
- Fuse protected
- Plug-in low voltage wiring terminal
- LED status panel
- Direct or reverse acting
- Selectable output response speed
- Linear or logarithmic output
- Pump exercise (10 Seconds after 3 days of no operation)
- Cast iron construction
Note: Full flange-to-flange three-year warranty on all 00 Series circulators.

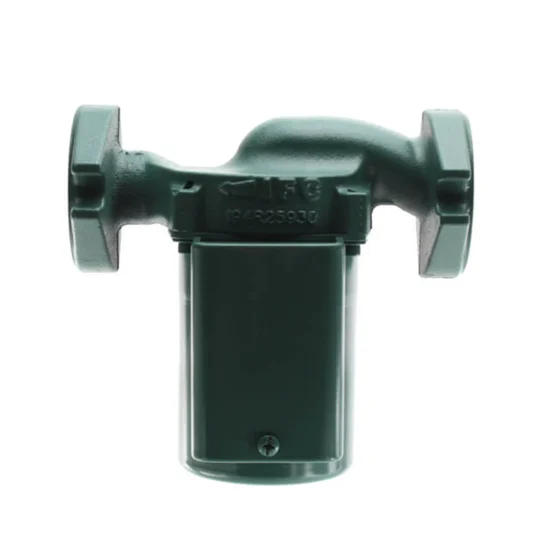

*Note: Picture is illustrative and may not reflect the actual product.*
